Temflex Vinyl Electrical Tape 1500

    • General purpose Quality ,Economical Electrical Insulation & Color Coding Tape
    • A good quality economical general purpose soft PVC tape
    • Electrical insulation for all wire and cable splices
    • Provides excellent environmental protection and moisture sealing.

    Temflex-General Use Vinyl Tape


Adhesion to Steel 2,2 N/cm
 Adhesive Material Rubber Resin, The adhesive layer is a rubber-based
Adhesive Type Rubber
Backing Material Vinyl
Backing Thickness (metric) 0.18 mm
Brand Scotch
Chemical Resistant Yes
Dielectric Strength (V/mil) 1250
Elongation at Break 225%
Flame Retardant Yes
Insulated Yes
Insulation Resistance > 10^6 megohms
Length (Metric) 20 m
Material PVC
Maximum Operating Temperature (Celsius) 105 Degree Celsius
Operating Temperature (Celsius) Up to 105 Degree Celsius
Operating Temperature Range (Celsius)  0 °C to 105 °C
Product Type PVC tape
RoHS 2011/65/EU Compliant Yes
 RoHS EU Comments RoHS 2011/65/EU compliant without exemption

*Important RoHS information

Self-Extinguishing Yes
Self Sticking/Amalgamating No
Shelf Life 5 Year
Suitable for High Voltage No
Tape Colour option Green, Red, Blue, Yellow, White, Orange
Tape Grade Professional Use
Tape Type PVC insulation
Thickness (Metric) 0.178 mm
Total Tape Thickness without Liner (metric)  0.178 mm
UL File Number E129200
UV Resistant Yes
Voltage Application Low Voltage
Voltage Rating 600 V
Vulcanizing No
Width (Metric) 19.05 mm

Additional information


Sub Brand

Product Fact Sheet

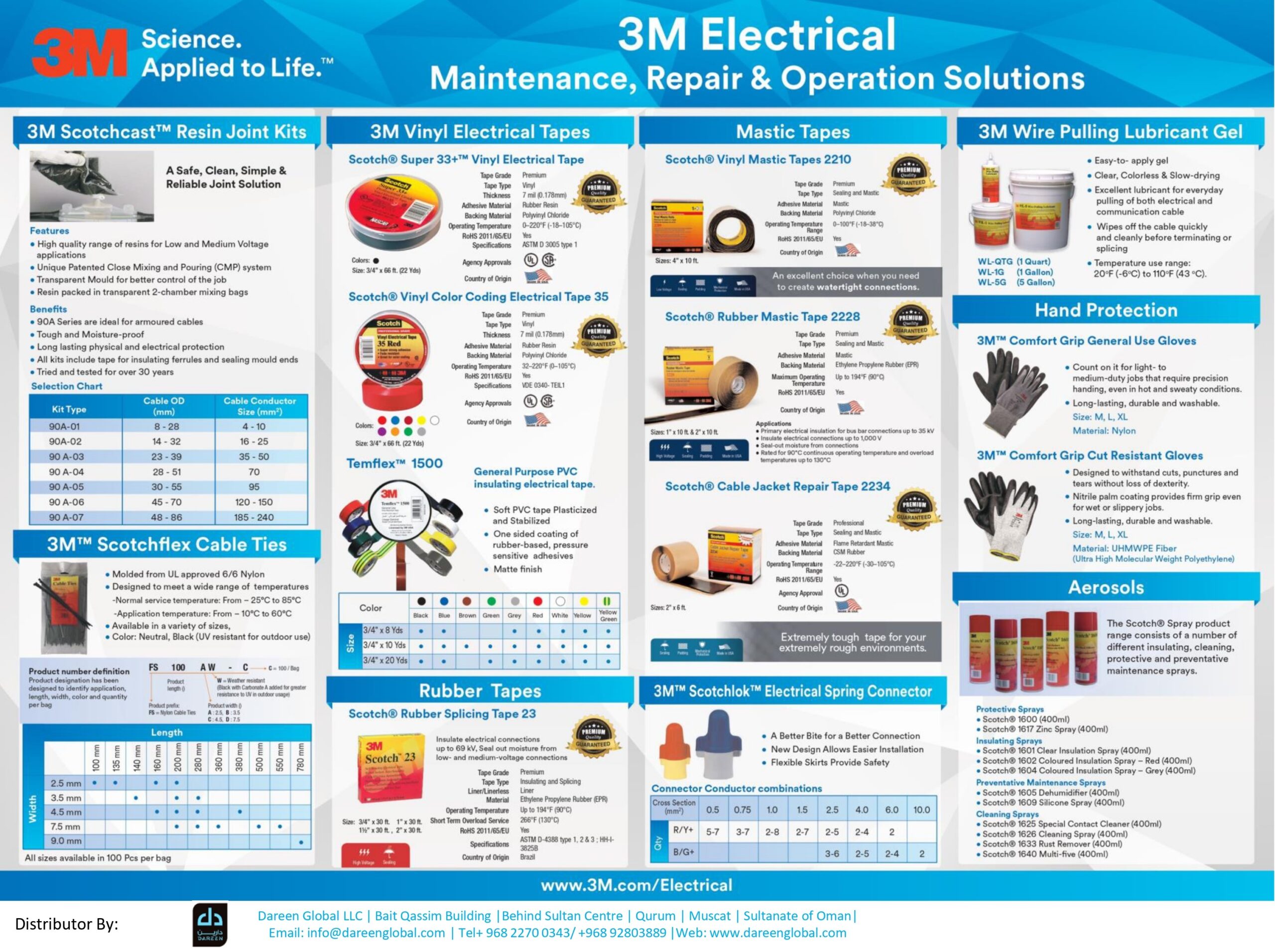

3M Electrical Tape Catalogue
