Scotch Vinyl Electrical Tape 35

  • Excellent electrical and mechanical protection from combined pressure-sensitive, rubber-resin adhesive and PVC backing
  • Pressure-sensitive rubber adhesive bonds easily and securely
  • Suitable for use in phase identification, color coding of motor leads and piping systems and for marking safety areas
  • Tensile strength rating of 17 lbs. per inch meets professional electrical standards
  • Available in blue, brown, gray, green, orange, red, violet, white, yellow, and pink
  • Withstands a temperature range of 32 to 221 degrees F (0 to 105 degrees C)
  • UL Listed, VDE, CSA Certified and RoHS 2011/65/EU Compliant

Scotch Vinyl Electrical Tape 35 is a premium-grade, 7-mil thick polyvinyl chloride (PVC) color-coding tape. Outstanding electrical and mechanical properties make this tape excellent for use in phase identification, color coding of motor leads and piping systems.

Scotch Vinyl Electrical Tape 35 provides electrical and mechanical protection with the combination of an aggressive, pressure-sensitive, rubber-resin adhesive and an elastic PVC backing. This tape is flame-retardant and is highly resistant to UV rays, abrasion, moisture, alkalis, acids, solvents and varying weather conditions. It stretches easily and adheres virtually in any shape. Ideal for insulating electrical wires and is compatible with synthetic cable insulations, jackets and splicing compounds. UL Listed, VDE, CSA Certified and RoHS 2011/65/EU Compliant.



Description

Adhesion to Steel 2,2 N/cm
Adhesive Material Rubber Resin, The adhesive layer is a rubber-based
Adhesive Type Rubber
Backing Material Vinyl
Backing Thickness (metric) 0.18 mm
Brand Scotch
Chemical Resistant Yes
Dielectric Strength (V/mil) 1250
Elongation at Break 225%
Flame Retardant Yes
Insulated Yes
Insulation Resistance > 10^6 megohms
Length (Metric) 20 m
Material PVC
Maximum Operating Temperature (Celsius) 105 Degree Celsius
Operating Temperature (Celsius) Up to 105 Degree Celsius
Operating Temperature Range (Celsius) 0 °C to 105 °C
Product Type PVC tape
RoHS 2011/65/EU Compliant Yes
RoHS EU Comments RoHS 2011/65/EU compliant without exemption
*Important RoHS information
Self-Extinguishing Yes
Self Sticking/Amalgamating No
Shelf Life 5 Year
Suitable for High Voltage No
Tape Colour option Green, Red, Blue, Yellow, White, Orange
Tape Grade Professional Use
Tape Type PVC insulation
Thickness (Metric) 0.178 mm
Total Tape Thickness without Liner (metric) 0.178 mm
UL File Number E129200
UV Resistant Yes
Voltage Application Low Voltage
Voltage Rating 600 V
Vulcanizing No
Width (Metric) 19.05 mm

Additional information

Model

Sub Brand

Product Type

Product Fact Sheet

Download

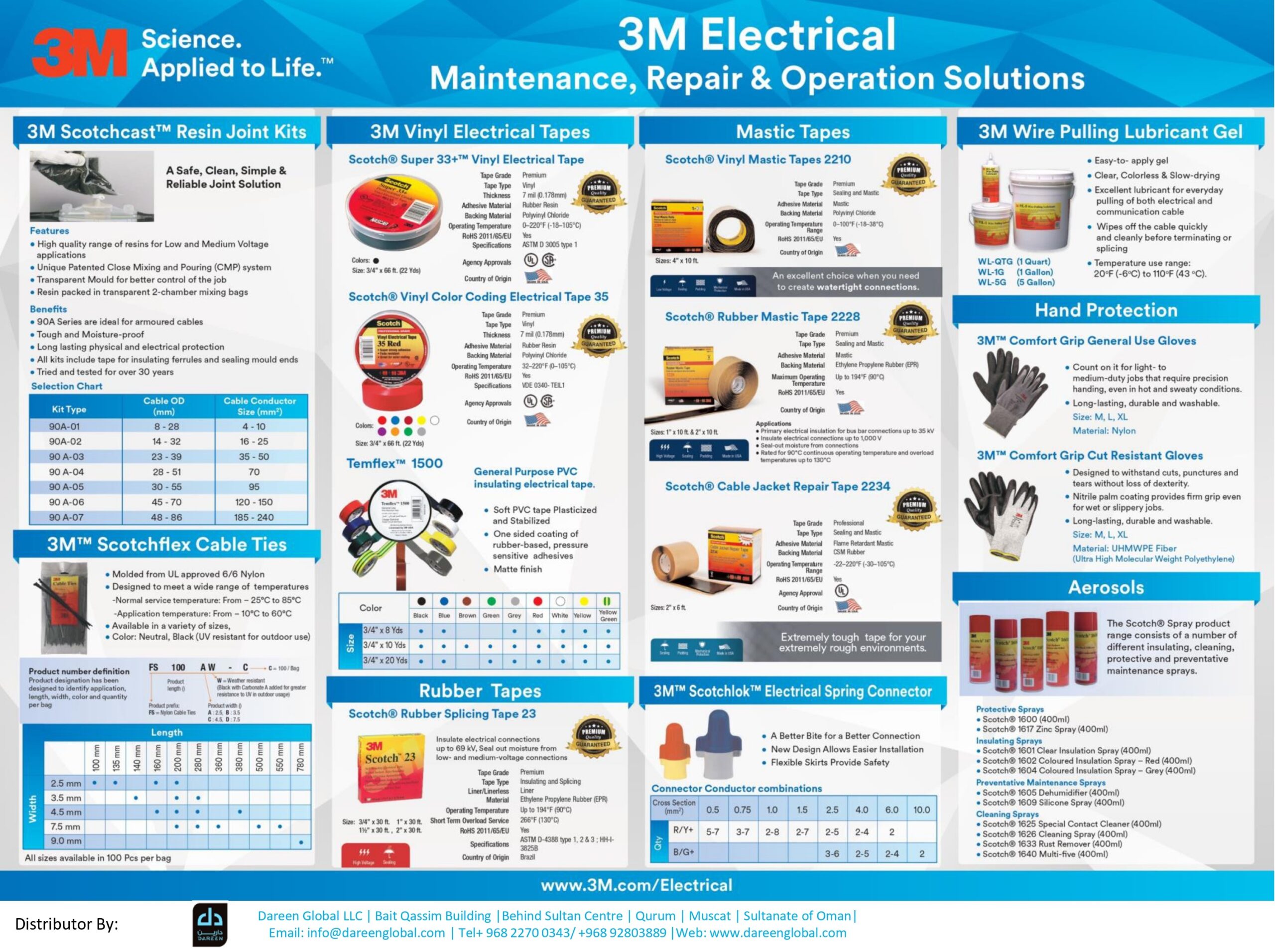

3M Electrical Tape Catalogue
